1. Use a small screwdriver to gently remove the retaining clip.

2. Remove the old bushing retainer from the cable, taking note of its installation direction.

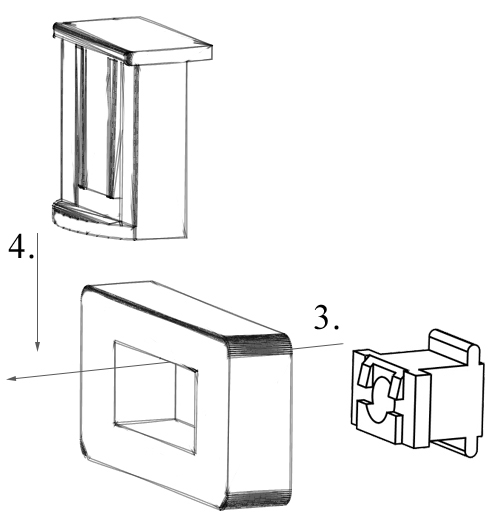

3. Install the replacement retainer in the same direction as the old one.
4. Install the retaining clip halfway onto the assembly (so the retainer can still slide within the cable).
5. With both the transmission lever and inside selector lever in Park, connect the cable to the lever.
6. Fully engage the retaining
